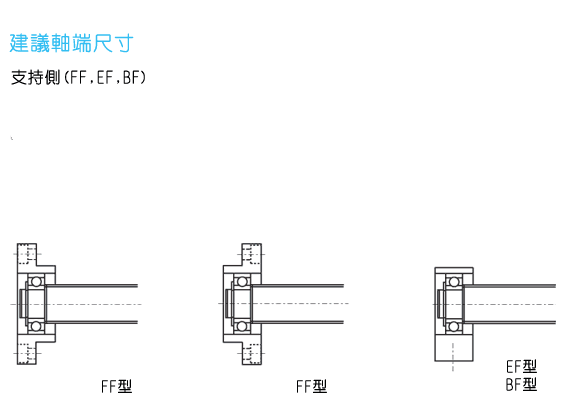

| 型號. | 滾珠螺桿外徑 | 軸承部軸外徑 | |||
| d | A | E | |||
| FF 06 | EF 06 | 8 | 6 | 9 | |
| FF 10 | EF 10 | BF 10 | 12/14/15 | 8 | 10 |
| FF 12 | EF 12 | BF 12 | 14/15/16 | 10 | 11 |
| FF 15 | EF 15 | BF 15 | 18/20 | 15 | 13 |
| - | - | BF 17 | 20/25 | 17 | 16 |
| FF 20 | EF 20 | (BF20)Note | 25/28/30 | 20 | 19 (16) |
| FF 25 | - | BF 25 | 30/32/36 | 25 | 20 |
| FF 30 | - | BF 30 | 36/40 | 30 | 21 |
| - | - | BF 35 | 40/45 | 35 | 22 |
| - | - | BF 40 | 50 | 40 | 23 |
| 型號. | 扣環溝槽 | ||||
| B | F | G | |||
| FF 06 | EF 06 | 5.7 | 6.8 | 0.8 | |
| FF 10 | EF 10 | BF 10 | 7.6 | 7.9 | 0.9 |
| FF 12 | EF 12 | BF 12 | 9.6 | 9.15 | 1.15 |
| FF 15 | EF 15 | BF 15 | 14.3 | 10.15 | 1.15 |
| - | - | BF 17 | 16.2 | 13.15 | 1.15 |
| FF 20 | EF 20 | (BF20)Note | 19 | 15.35(13.35) | 1.35 |
| FF 25 | - | BF 25 | 23.9 | 16.35 | 1.35 |
| FF 30 | - | BF 30 | 28.6 | 17.75 | 1.75 |
| - | - | BF 35 | 33 | 18.75 | 1.75 |
| - | - | BF 40 | 38 | 19.95 | 1.95 |
