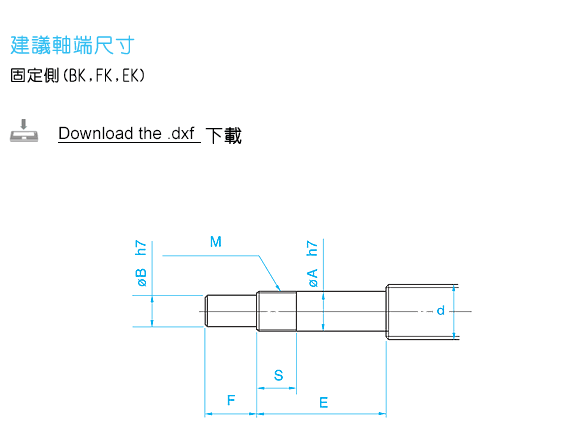

| 型號. | 滾珠螺桿軸外徑 | 軸承部軸外徑 | 公稱螺紋 | ||||
| BK (Type BK) | d | A | B | E | F | M | S |
| BK 10 | 12/14/15 | 10 | 8 | 36 | 15 | M10×1 | 16 |
| BK 12 | 14/15/16 | 12 | 10 | 36 | 15 | M12×1 | 14 |
| BK 15 | 18/20 | 15 | 12 | 40 | 20 | M15×1 | 12 |
| BK 17 | 20/25 | 17 | 15 | 53 | 23 | M17×1 | 17 |
| BK 20 | 25/28 | 20 | 17 | 53 | 25 | M20×1 | 15 |
| BK 25 | 32/36 | 25 | 20 | 65 | 30 | M25×1.5 | 18 |
| BK 30 | 36/40 | 30 | 25 | 72 | 38 | M30×1.5 | 25 |
| BK 35 | 45 | 35 | 30 | 83 | 45 | M35×1.5 | 28 |
| BK 40 | 50 | 40 | 35 | 98 | 50 | M40×1.5 | 35 |
| 型號. | 滾珠螺桿軸外徑 | 軸承部軸外徑 | 公稱螺紋 | |||||
| Type FK | Type EK | d | A | B | E | F | M | S |
| FK 6 | EK 6 | 8 | 6 | 4 | 28 | 8 | M6×0.75 | 8 |
| FK 8 | EK 8 | 10月12日 | 8 | 6 | 32 | 9 | M8×1 | 10 |
| FK 10 | EK 10 | 12/14/15 | 10 | 8 | 36 | 15 | M10×1 | 11 |
| FK 12 | EK 12 | 14/15/16 | 12 | 10 | 36 | 15 | M12×1 | 11 |
| FK 15 | EK 15 | 18/20 | 15 | 12 | 47 | 20 | M15×1 | 13 |
| FK 20 | EK 20 | 25/28/30 | 20 | 17 | 62 | 25 | M20×1 | 17 |
| FK 25 | - | 30/32/36 | 25 | 20 | 76 | 30 | M25×1.5 | 20 |
| FK 30 | - | 36/40 | 30 | 25 | 72 | 38 | M30×1.5 | 25 |
